Product Description | Product Features | ||
•200,000 display division •Support 350ohm x 8 load cell •Two display increment size range •RS232/485 (standard) •49mm high display, green or red •MODBUS_RTU •Basic Functionality: ZERO, TARE, CLEAR and PRINT. •Auto Tare, Auto Clear and Auto Print •Print and Totalization •X10 / Over/Under/OK / Count / Animal Weighing / Unit Switch. •Auto save battery and battery indicating •Auto Power OFF •Power Input: 100~264VAC, < 0.1A |
|||

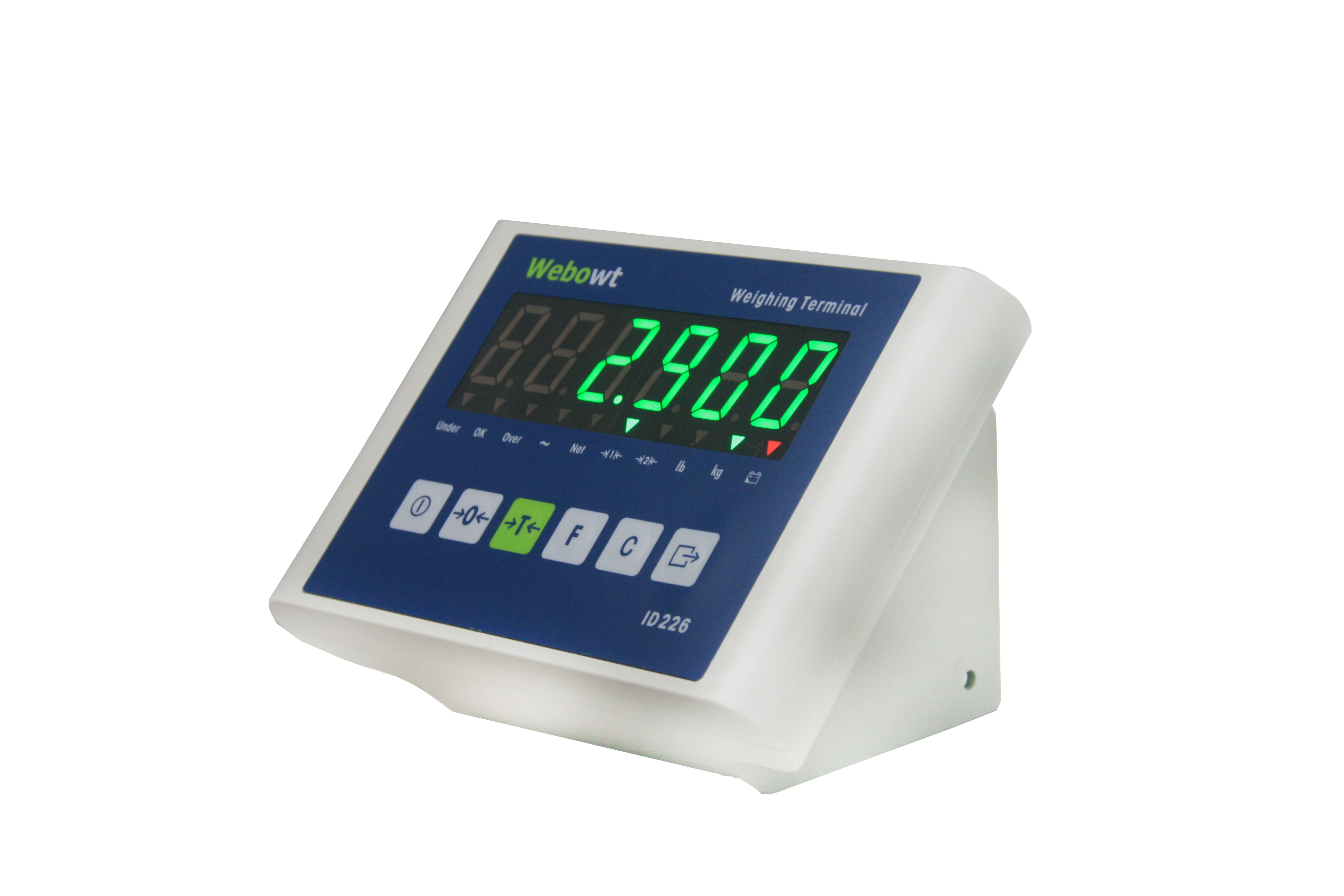

•ID226 is an industry weighing indicator for platform | |||
scale and track scale,high accuracy and fast stability. | |||
•SS harsh enclosure with IP66 protection | |||
•6 bits 49mm high green or red LED display and 10 status lights | |||
•200,000 display division | |||
•Two weight display range with two increment size | |||
Standard with one serial ports (RS232/485) | |||
•Plat Form Scale | |||
•Track Scale | |||
•Counting Scale | |||
•Over/Under/Ok Classify Scale | |||
•Animal Weighing Scale | |||
Options | |||
1. NI-MH battery group,GP 7.2 VDC 3800mAh | |||
Specifications and Parameters | |||
Accuracy | |||
Accuracy Class | III | ||
EU Approval | 200,000 Display Division | ||
Increment Size | Two display increment size range |
||
Display & Keypad | |||
Display | 6 bits 49mm high green or red LED display and 10 status lights | ||
Update Speed | 100ms | ||
Status Display | Over/Under/OK, Count | ||
KG/LB, Center of Zero, Net/Gross, Motion, Battery | |||
Key | 5 function keys (Tare, Clear, Zero, Function key, Print) | ||
Power On/Off | Support |
||
ADC | |||
Type | 24-bit | ||
Speed | 100 Hz | ||
Resolution | 0.05uV/d | ||
Resolution Approved | 1uV/e | ||
Input | 0.1mV to 19mV | ||
Accuracy | 200,000d | ||
Linearity and Stability | |||
In-linearity & TC | <0.0015% FS; <5ppm/oC | ||
Load Cell | |||
Exciting Voltage | 5V DC |
||
Load Cell Number | Max 8 x 350Ω | ||
Connect Type | 4- wired or 6-wired, Cable:274mR/m2 |
||
Scale Basic Functionality | |||
Calibration | 2-point, 3- point, 5-point | ||
Filter | 3-step |
||
Scale Process | Tare, Zero, Auto Zero, Motion, Auto Tare, Auto Clear, Auto Print and Print Totalization |
||
Inputs | None | ||
Outputs | None | ||
Application | |||
Basic Weighting | Tare, Zero, Print, Auto Tare, Auto Clear and Auto Print, Unit switch | ||
Classify | Over/Under/OK alarm output with relay output | ||
Counting | Supported |
||
Print and Totalization | Supported |
||
Animal Weighing | Supported |
||
Communication I/F | |||
Serial Port | COM1-RS232/485 | ||
Continuous Output | Supported | ||
MODBUS-RTU | Report Weight, Remote Zero, Tare, Clear | ||
Housing | |||
Harsh | IP66, Round housing bracket or Wall housing bracket | ||
Working Condition | |||
Temperature | -10oC** 40oC, 95% RH | ||
Power Supply | 110VAC ~ 220VAC, 12W |
